ABB DALI GATEWAY — HOW TO CONNECT KNX WITH DALI LIGHTING

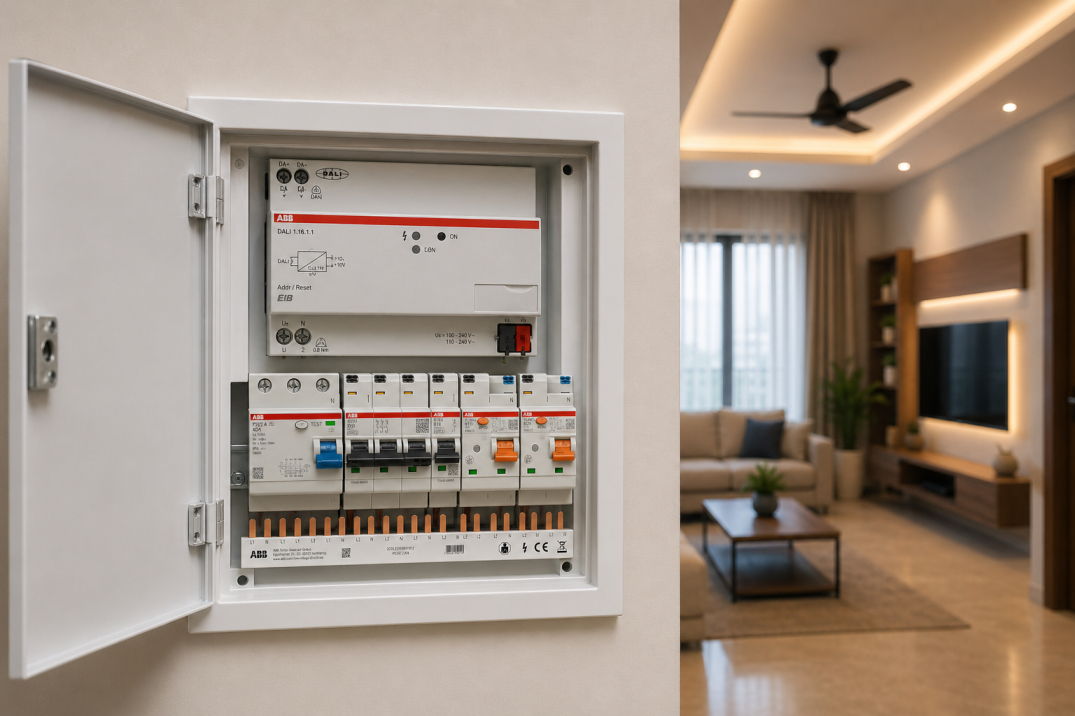

The ABB i-bus KNX DALI Gateway is the interface device that bridges two of the world's most important building automation standards — KNX building automation and DALI (Digital Addressable Lighting Interface), which has become the most important lighting control in the building management system — into a single unified system. It allows a KNX installation to control, dim, group, and scene-program up to 64 individual DALI lighting devices per gateway channel, enabling precision lighting automation that neither standard can deliver independently.

What is DALI — And Why Does It Need KNX?

DALI — Digital Addressable Lighting Interface — is an international lighting control protocol (IEC 62386) that gives every connected luminaire its own unique digital address. Unlike simple 0–10V dimming where all fixtures on a circuit dim together, DALI allows each of 64 luminaires on a single bus to be individually addressed, dimmed, grouped, and scene-programmed — from a single two-wire cable.

Why DALI is used in premium Indian installations:

In any architectural lighting project — cove lighting with 20 LED drivers, a hotel corridor with 48 downlights, a villa living room with 12 individually controlled accent spots — the ability to address each fixture independently is what separates professional lighting control from simple circuit switching.

Why DALI needs KNX:

DALI is a lighting-specific protocol — it does not speak to climate, blinds, security, or any other building system. KNX is the universal building automation backbone. The ABB DALI Gateway serves as the interface between the KNX installation in the building and the digital DALI lighting control system, and therefore unites the two most important building automation standards.

The result: your DALI lighting system becomes a fully integrated component of your KNX smart home — responding to presence detectors, daylight sensors, time schedules, and whole-home scenes — not just manual dimmer commands.

ABB DALI Gateway Range — 7 Models for Every Purpose

ABB's DALI range includes 7 different types of DALI gateways for nearly every purpose.

For Indian luxury residential projects, the DG/S 1.64.5.1 Premium and DG/S 2.64.5.1 Premium are the correct specification — delivering the full feature set including Tunable White, Human Centric Lighting, and RGB control that premium Indian interiors require.

The "Three in One" Advantage

Previously, controlling individual DALI devices, DALI groups, and DALI emergency lighting required three separate gateway devices. The big advantage is that individual DALI devices, DALI groups and DALI emergency devices can now be controlled with one DALI Gateway instead of three.

This consolidation has a direct impact on panel space, installation cost, and commissioning complexity for Indian projects — fewer devices, fewer KNX addresses, and a cleaner electrical panel.

ABB DALI Gateway Premium — Complete Feature Set

The ABB DALI Gateway Premium supports Tunable White, Human Centric Lighting (HCL), Dim2Warm, RGB(W) and HSV(W) — plus up to 4 sequences per DALI output for various lighting scenarios, flexible maintenance cycles by recording operating time, standby shutdown and integration into a load control system, and DALI-2 certification according to IEC62386.

Feature 1 — Tunable White Control

The Premium gateway controls DALI tunable white luminaires — fixtures with two separate LED channels (warm white + cool white) that mix to produce any color temperature between 2700K and 6500K. From a single KNX command, the gateway adjusts both LED channels simultaneously to achieve the target color temperature.

Indian application: Living room ceiling downlights at 3000K for evening ambiance, shifting to 5000K for morning focus — all automated by a time schedule in KNX without any manual intervention.

Feature 2 — Human Centric Lighting (HCL)

The Human Centric Lighting functionality has a positive effect on human concentration, performance and health.

The Premium DALI Gateway's HCL mode automatically shifts connected luminaires through a programmed color temperature and intensity curve throughout the day — matching the natural progression of daylight. Cool, bright light in the morning supports alertness. Neutral light during working hours sustains concentration. Warm, dim light in the evening supports melatonin production and prepares the body for sleep.

For Indian home offices, children's study rooms, and master bedrooms, our human-centric lighting installations at Brightmatic use the ABB DALI Gateway Premium's HCL mode as the automation engine — with DALI tunable white downlights as the luminaire layer.

Feature 3 — Sequences

In addition to scenes, 4 sequences per DALI output can be used for various lighting scenarios.

A DALI sequence is a time-based lighting programme — a series of lighting states that play in order, each with configurable transition time and hold duration. Examples for Indian projects:

Welcome sequence — Lights gradually brighten from 0% to 80% over 30 seconds as you enter the lobby.

Dinner sequence — Living room shifts from 60% neutral white through a 5-minute gradual transition to 30% warm white as the dining scene begins.

Sleep sequence — Bedroom dims from 40% to 5% over 20 minutes, then switches off — without requiring any manual input.

Feature 4 — Dim2Warm

Dim2Warm is a DALI function that automatically shifts color temperature warmer as brightness decreases — mimicking the behavior of incandescent bulbs. At 100% brightness, the light is neutral white (4000K). As it dims to 10%, the color temperature shifts to deep warm white (2700K). This behavior is deeply familiar and comfortable — creating a natural, organic dimming experience without requiring separate color temperature control.

Feature 5 — Emergency Lighting Integration

The ABB DALI Gateway supports DALI self-contained emergency lighting — devices with built-in battery that activate on mains failure. DALI self-contained emergency lighting support inhibit/rest mode, which extends the lifespan of the emergency devices, for instance during construction phase.

For Indian commercial projects and high-end residential buildings where emergency lighting compliance is required, the gateway manages both normal and emergency DALI devices from the same KNX interface — eliminating the need for a separate emergency lighting controller.

KNX + DALI — The Complete Lighting Control Architecture

Understanding how KNX and DALI work together clarifies why this combination is the professional standard for luxury Indian lighting projects.

What KNX alone cannot do: Address 64 individual luminaires independently on a single bus — KNX switching actuators control circuits, not individual fixtures.

What DALI alone cannot do: Respond to KNX presence detectors, daylight sensors, or whole-home scenes — DALI is lighting-only.

What KNX + ABB DALI Gateway delivers: Complete, intelligent, individually addressable lighting control as part of a whole-building automation ecosystem.

ETS Programming — Faster Than Ever

The flexible ETS programming is simplified by pages of user-friendly templates. These facilitate faster programming as a single change in parameters updates the parameters of all 64 DALI participants and 16 groups automatically.

For Indian projects where commissioning time is a real cost, this template-based ETS programming significantly reduces the time required to configure a full 64-device DALI installation. A change to the scene brightness level for Group 3 updates all 64 participants simultaneously — rather than requiring individual parameter changes per device.

• In a recent Brightmatic project at a luxury villa in Sector 44, Noida — we specified the ABB DG/S 2.64.5.1 Premium gateway controlling 94 DALI downlights across 14 zones on two gateway channels. The HCL programme in the master bedroom, home office, and living room shifted color temperature automatically from 5000K at 7 AM to 2700K at 9 PM. The client's observation after one week: "I stopped adjusting the lights manually. They just look right all day."

Where ABB DALI Gateway is Specified in Indian Projects

Our architectural lighting and lighting control team at Brightmatic specifies the ABB DALI Gateway for every Indian project where individual luminaire addressability is required:

Luxury villas — 30–100 DALI downlights across multiple rooms, each individually dimmable and grouped into scenes via KNX touch panels.

Premium apartments — DALI cove lighting drivers in living rooms and master bedrooms — individually addressable to prevent the uneven brightness that occurs when DALI drivers are daisy-chained without individual addressing.

Hospitality projects — Hotel guest rooms with DALI downlights, tunable white bedside lighting, and emergency DALI fixtures — all controlled from a single ABB DALI Gateway per room connected to the hotel's KNX building management system.

Commercial offices — Open-plan offices with constant light control — ABB KNX daylight sensors communicating via the DALI Gateway to dim or brighten individual DALI luminaires to maintain a consistent 500 lux at desk level regardless of external daylight conditions.

FAQ's

1. What is the difference between DALI and KNX — and why do I need both?

KNX is a universal building automation protocol that controls lighting, climate, blinds, security, and energy management across a unified bus. DALI is a lighting-specific protocol that provides individual digital addressing of up to 64 luminaires per bus — enabling precise dimming, grouping, and scene programming at the fixture level. KNX cannot individually address 64 luminaires on a single bus — it controls circuits. DALI cannot respond to occupancy sensors, daylight sensors, or climate commands — it only receives lighting commands. The ABB DALI Gateway bridges both standards, delivering individually addressable luminaire control as part of a complete KNX smart home system.

2. How many DALI devices can one ABB DALI Gateway control?

Each DALI channel of the ABB Gateway controls up to 64 individual DALI devices — luminaires, LED drivers, or DALI emergency units. These can be compiled into 16 DALI groups and scenes. The two-channel Premium model (DG/S 2.64.5.1) therefore controls up to 128 DALI devices across two independent DALI buses — sufficient for a complete luxury Indian villa with multiple floors and zones.

3. Can ABB DALI Gateway control RGB and tunable white lights simultaneously?

Yes — the Premium gateway models support Tunable White, Human Centric Lighting, Dim2Warm, RGB(W) and HSV(W) — all from a single device. Different DALI device types (monochrome dimmers, tunable white drivers, RGB drivers) can coexist on the same DALI bus and be controlled independently through the gateway. A single KNX scene command can simultaneously dim monochrome downlights, shift tunable white ceiling lights to 3000K, and set RGB accent lighting to a specific color — all executed through one ABB DALI Gateway.

4. Does the ABB DALI Gateway support emergency lighting in Indian commercial projects?

Yes — the ABB DALI Gateway supports DALI self-contained emergency lighting devices (DALI Part 1, Device Type 1) alongside normal DALI luminaires on the same bus. The gateway monitors emergency device battery status, test results, and fault conditions — reporting all data to the KNX system. For Indian commercial projects where NBC (National Building Code) emergency lighting requirements apply, this integration provides both compliance monitoring and automated test scheduling through the KNX system.

5. What is the difference between ABB DALI Gateway Basic and Premium?

The Basic gateway (DG/S 1.64.1.1 and DG/S 2.64.1.1) provides standard DALI control — individual addressing, group control, scene programming, and emergency lighting support. The Premium gateway adds Tunable White control, Human Centric Lighting automation, Dim2Warm, RGBW and HSV color control, 4 lighting sequences per output, operating time recording, and standby shutdown for energy management. For Indian luxury residential projects where tunable white or HCL functionality is specified, the Premium gateway is the correct choice. For standard on/off and dimming applications, the Basic gateway is sufficient.
